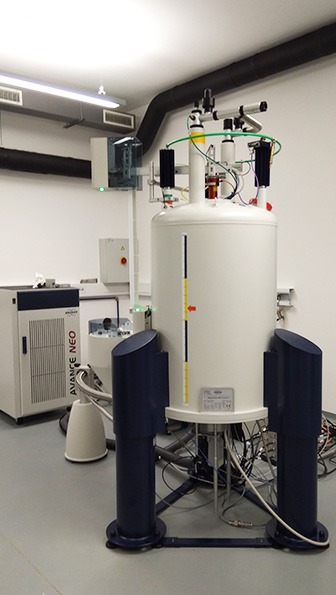

600 MHz Nuclear Magnetic Resonance Spectrometer (Aska)
Slovenian NMR Centre in Ljubljana
Technical specifications
MAGNET
14.1 Tesla 54 mm bore ASCEND superconducting magnet
CONSOLE
Five channel console (two high band 1H and 19F channels and three broad band channels, 6-365 MHz)
High performance Bruker Orthogonal Shim System (BOSS-III), 36 shim gradients
System for automatic matching and tuning on all channels
10 A gradient module
Advanced Bruker Smart Variable Temperature (BSVT) control unit
PROBES
5 mm 1H-optimized quadruple resonance cryo probe designed for 1H observation with 31P/13C/15N decoupling, and high sensitivity for 13C observation with 1H decoupling (VT range: -40° to +80°C)
5 mm 1H-optimized quadruple resonance probe designed for 1H observation with 31P/13C/15N decoupling (VT range: -150 °C to 150°C)
HOST COMPUTER
HP Z4 G4 Workstation, Intel Xeon W-2135 CPU, 32 GB ram, Samsung Evo850 250GB SSD + Toshiba 2TB hard drive, Quadro P2000 graphic card, HP z24nG2 24″ LCD monitor
SYSTEM
Windows 10
SOFTWARE
Bruker Topspin 4.0.7
Contact: Janez Plavec
Tel:+386 147 60 353
Detailed information can be found on the Instrument’s webpage.
